Chain Driven Roofing Roll Forming Machine with 18 Forming Stations and 5.5Kw Motor Power

Name: Chain Driven Roofing Roll Forming Machine with 18 Forming Stations and 55Kw Motor Power
Brand: METALIGN
Price: 1 USD

Wholesale Chain Driven Roofing Roll Forming Machine with 18 Forming Stations and 5.5Kw Motor Power from china suppliers

Brand Name : METALIGN

Model Number : IBR

Certification : CE,ISO,etc

Place of Origin : CHINA

MOQ : 1 set

Price : USD1,000-700,000. Based on customization.

Payment Terms : L/C,T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Industrial plastic film wrapping, secured with steel wire.

Product name : Steel IBR Roofing Panel Metal Roofing Machine For Durable Construction Sheets

Key words : metal ibr roof panel roll forming machine/ibr roof panel production line

Profile : IBR Panel

Application : Residential Roofing / Commercial Roofing / Industrial Roofing

Material type : PPGI/PPGL/GI/GL Steel Coils

Material thickness : 0.3-0.8mm

Forming speed : 15-20m/min

Main motor power : 5.5Kw

Forming stations : 18

Driving system : Chain

Frame structure : Wall panel

Shaft diameter : 70mm

Machine condition : Brand new

Shaft material : #45 steel quenched 55-60℃

Roller material : High grade #45 steel , surface with hard chrome

Display language : English/Spanish/Russian/French,etc, customizable

Control technique : PLC+Touch Screen

Delivery time : 30 days

Contact Now

1. Overview

1.1 Production Line

This roll forming production line is designed for manufacturers producing high-demand IBR roof panels. It serves construction, roofing, and steel structure industries with cost-effective solutions, stable performance, and tailored configurations to meet regional roofing standards.

Chain Driven Roofing Roll Forming Machine with 18 Forming Stations and 5.5Kw Motor Power Guide

Chain Driven Roofing Roll Forming Machine with 18 Forming Stations and 5.5Kw Motor Power

Form

Chain Driven Roofing Roll Forming Machine with 18 Forming Stations and 5.5Kw Motor Power

Cut

1.2 Profile
The IBR roof panel is produced from galvanized steel coils, thickness 0.3–0.8 mm. It features five major waves with reinforcing ribs between each wave, ensuring excellent strength, durability, and water resistance. This profile is widely applied in residential, industrial, and commercial roofing projects.
Material: Galvanized Steel / PPGI / Aluminum	Thickness: 0.3-0.8mm
Yield strength: 200 - 350 Mpa	Tensil stress: 200 -350 Mpa

1.3 Production Process

Flow Chart:

Hydraulic Decoiler → Entry Guide → Roll Former → Hydraulic Cutter → Out Table

Process:

The production line unwinds steel coils, aligns the strip, and feeds into the roll former. The chain-driven forming unit shapes the steel into precise IBR roof panels with ribs between waves. A hydraulic cutter provides accurate cutting without material distortion, ensuring consistent quality for high-volume roofing production.

1.4 Key Focus
Chain-driven roll former with protective cover ensures safe and stable operation.
Rib-reinforced IBR profile offers superior strength and weather resistance.
Hydraulic cutting system guarantees precise panel length and clean edges.
Cost-effective solution suitable for both small and medium roofing manufacturers.

2. Technical Parameters

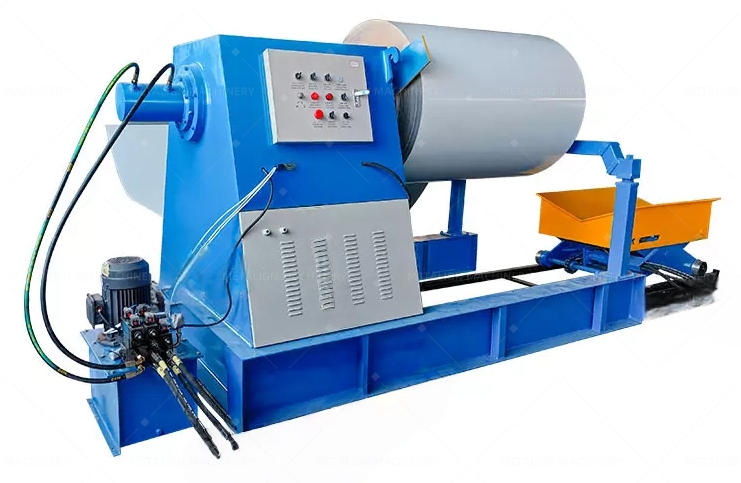

2.1 Decoiler
Structure	Double-support
Working Form	Manual, motorized, or hydraulic
Loading Capacity	5T/7T/10T, customizable
Coil Width	1250mm, customizable
Inner Diameter	Φ450 – Φ550 mm
Out Diameter	1500 mm
Model	DC-MU1

2.2 Optional Upgrade: Decoiler

Motorized Decoiler	Stand structure decoiler, motorized or hydraulic	Hydraulic decoiler with loading car

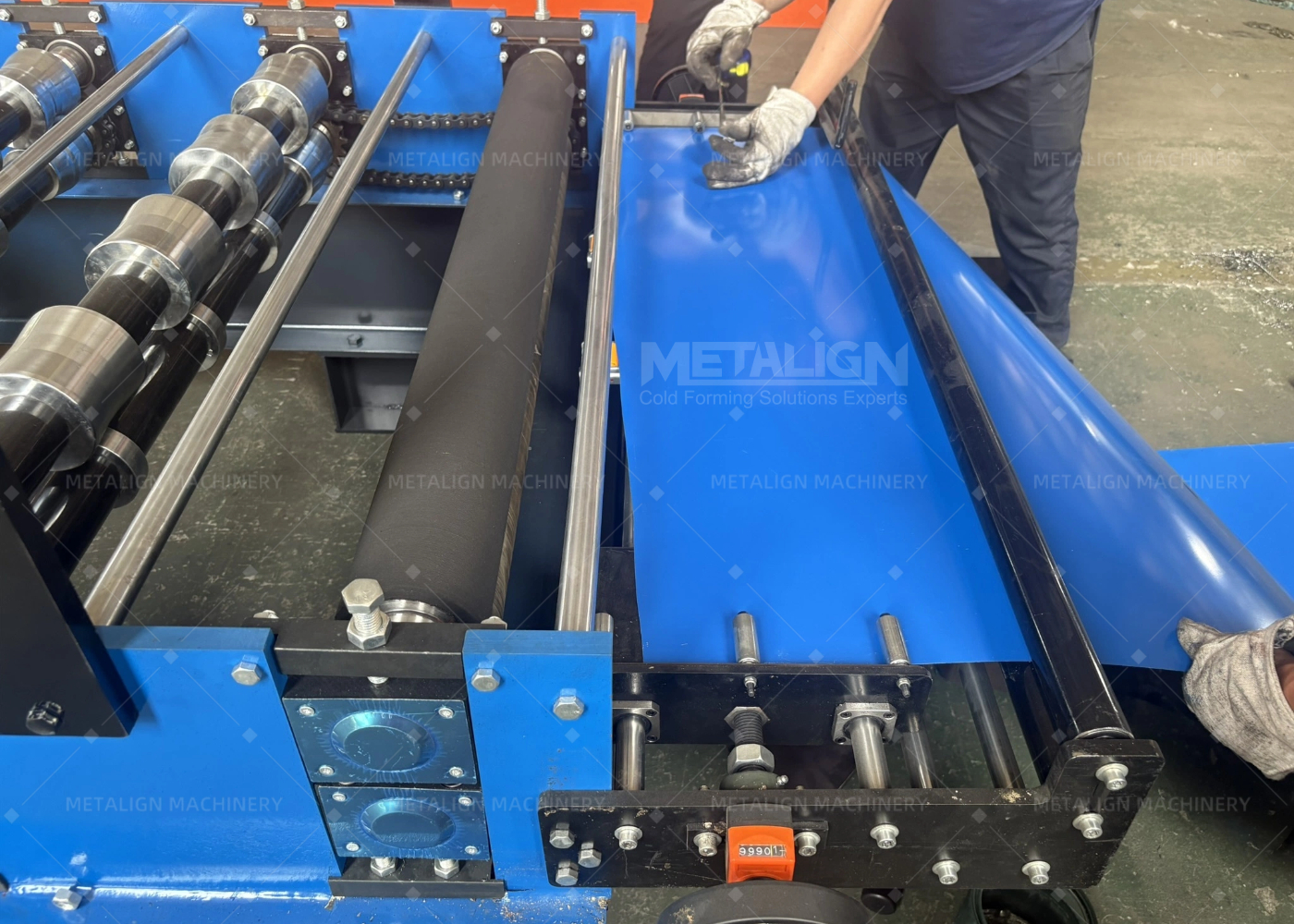

2.3 Guiding Device With Pre-Cut Broaching Shear
Guiding Roller	Adujust the coil feeding width
Pre-cut Broaching Shear	Cut the steel coil before roll forming
Digital Display	See the feeding width directly

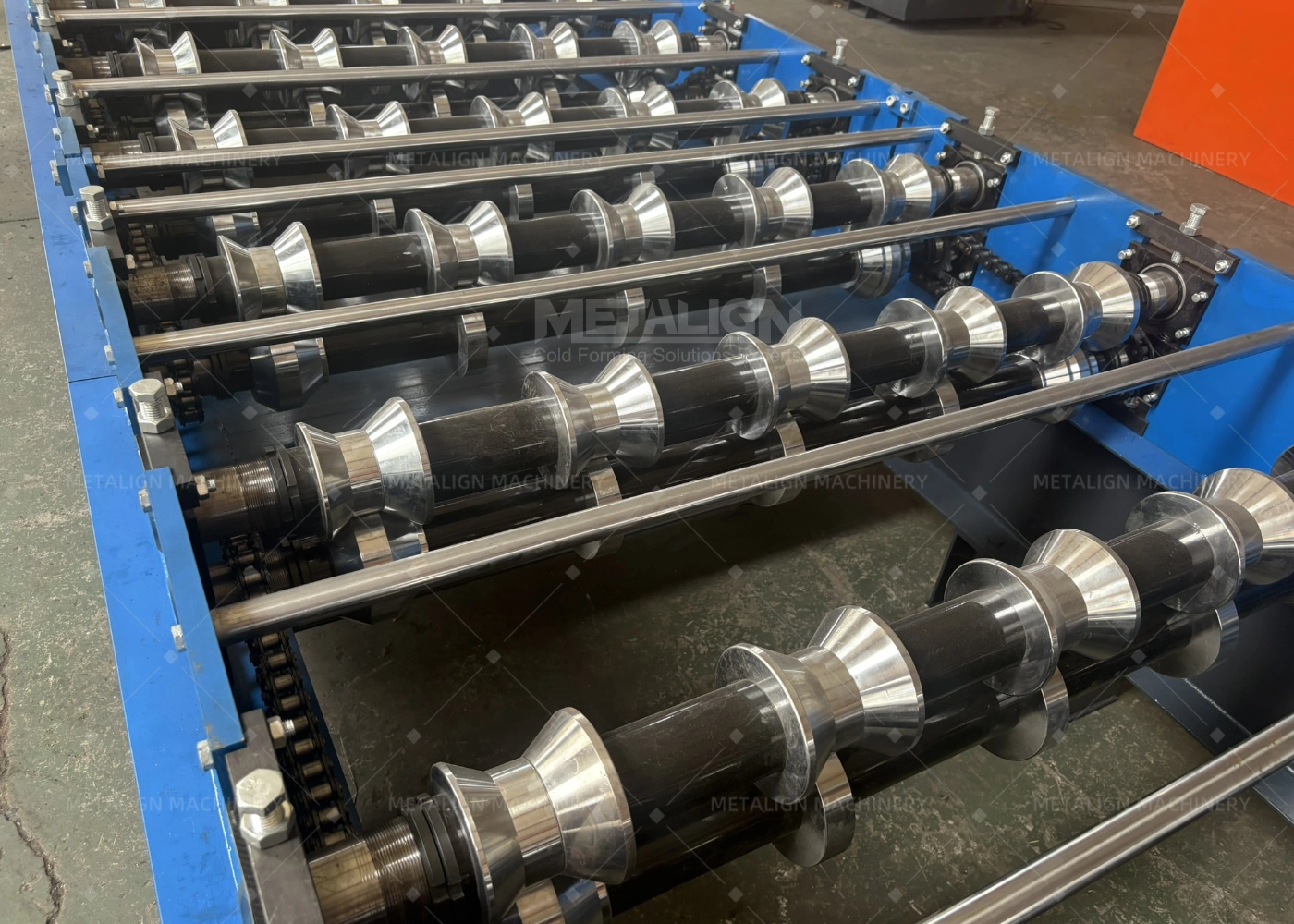

2.4 Roll Forming Machine
Working Speed	Around 20 m/min
Structure	Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System	Chain system. Optional: Gearbox
No. of Forming Stations	18 stands
Shaft Diameter	70mm solid shaft
Motor Power	5.5 Kw
Roller Material	45# steel polished and chromed HRC58-62°
Shaft Material	High grade 45# steel polished(CNC lathe)
Steel Coil Material	PPGI or GI
Steel Coil Thickness	0.25-0.8mm

2.5 Optional Upgrade: Cover

Mounted On The Inside: No Cover Required	Solid Cover For Chain	Mesh Safety Cover

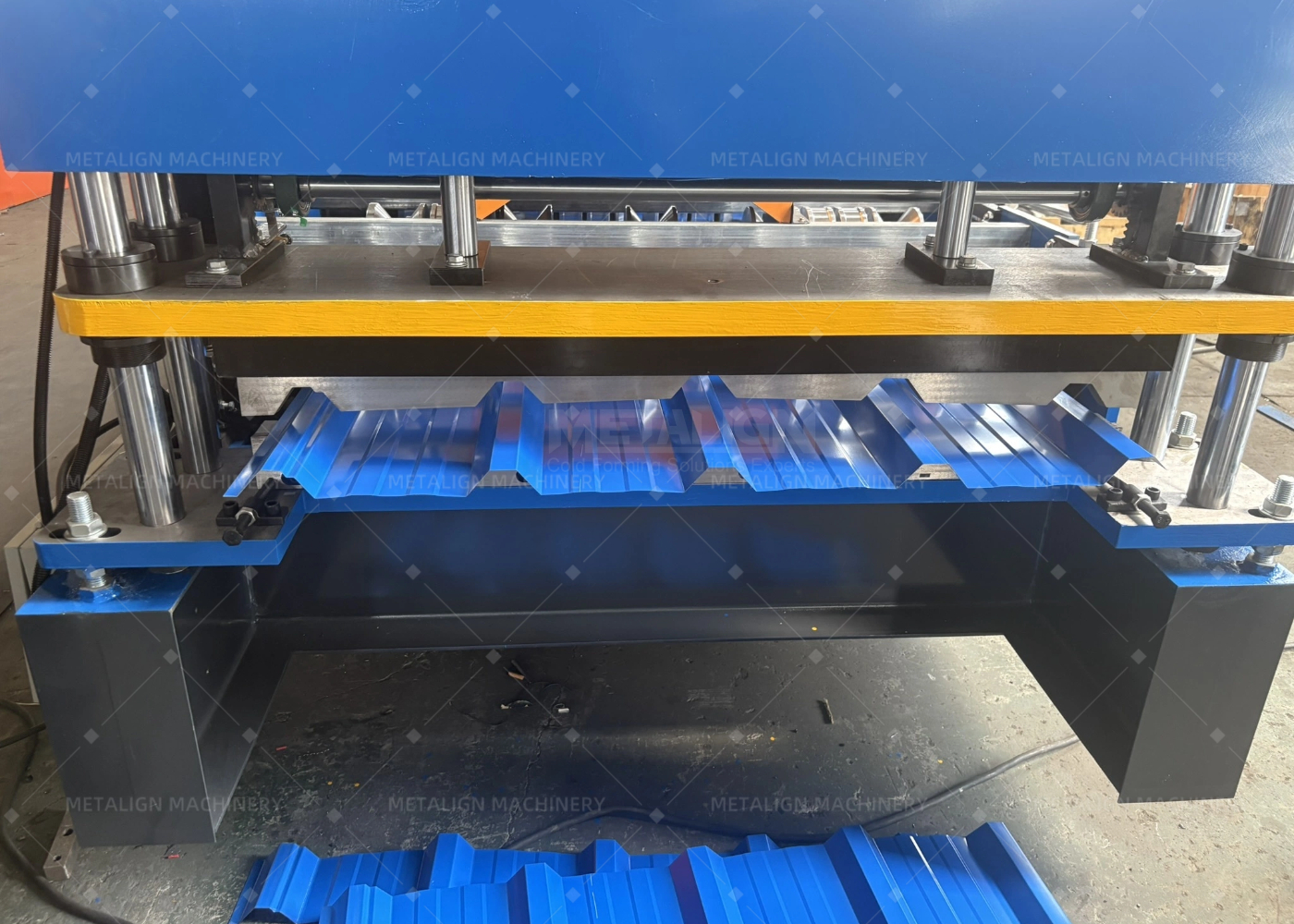

2.6 Cutter
Common Power Type	Hydraulic. Optional: motor type.
Hydraulic Power	4-5.5Kw, customizable
Blade Material	Cr12 Mov
Hardness	With quenched treatment HRC 58 – 62°

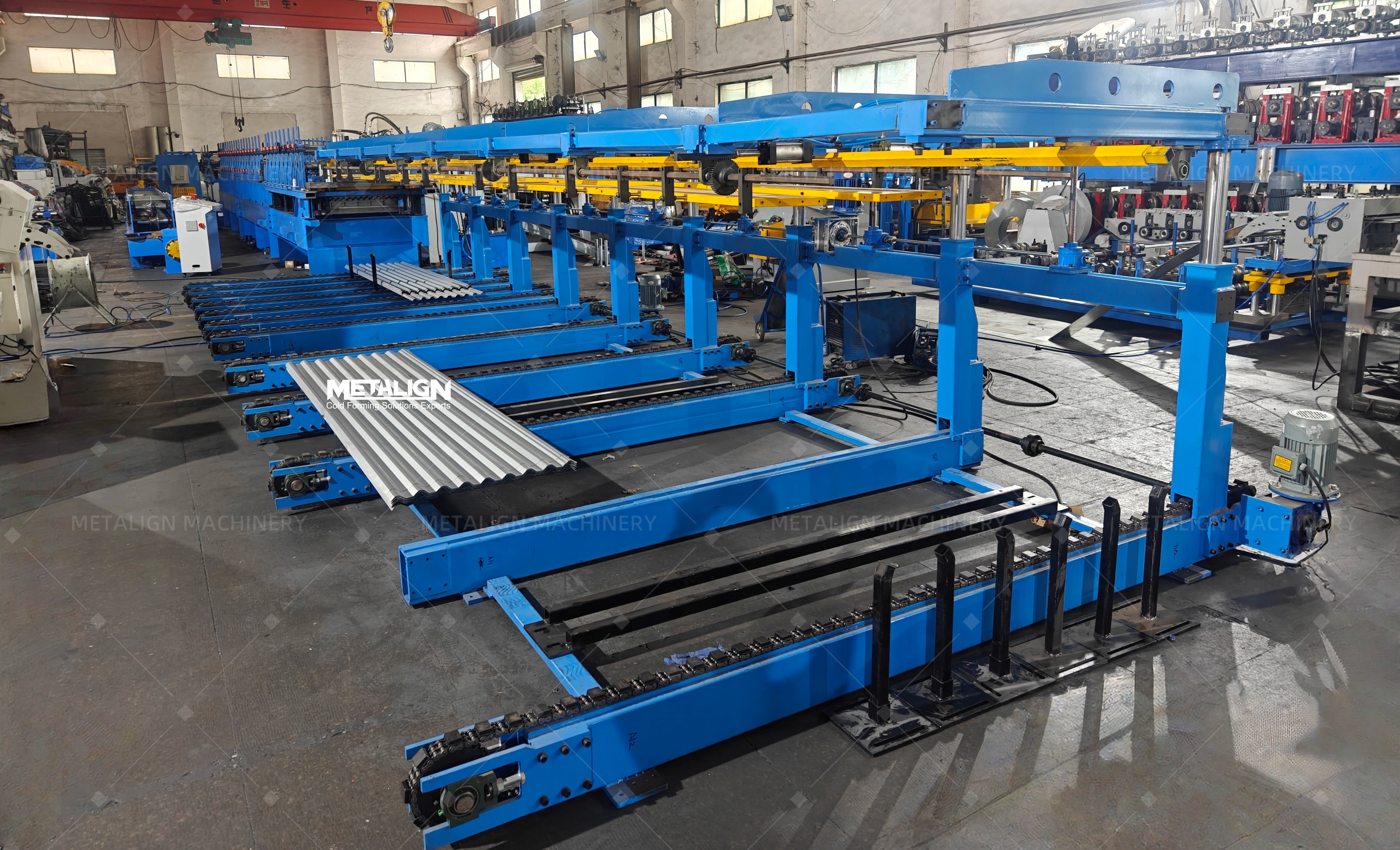

2.7 Product Collection
Solution 1	Run-out table	Solution 2	Auto stacker
Power Type	Non-powered, mainly manual handling	Power Type	Motorized, 3Kw
Dimension	Length 4m, customizable	Dimension	Length 4m-6m, customizable

2.8 PLC Control Cabinet
PLC Brand	Delta, customizable	Power Supply	380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand	Omron, customizable	Language	Chinese + English, Spanish, French, Russian, etc
Touch Screen	MCGS, customizable	Operation type	Manual /auto two-type switch
Hanging Arm Type	Saving Space	Standing Type	greater component integration and flexible positioning
Hanging-Arm Control Box		Standing Control Box

2.9 Hydraulic Power Unit (HPU)
Motor Power	5.5Kw
Oil Required	N32 or N46 hydraulic oil is available
Design	The hydraulic station has a fan cooling system
Optional	It can be installed on or inside the roll former to save space

2.10 Analysis
Hydraulic Decoiler	Supports medium thickness steel coils up to 7 tons
	Hydraulic tension control ensures smooth material feeding
Guiding Device	Precisely aligns steel strip for accurate forming
	Adjustable to accommodate different coil widths
Roll Former	Chain-driven for durable, stable forming
	Chain cover protects operators and prolongs chain life
Hydraulic Punching	Custom molds for precise perforations
	Hydraulic pressure offers consistent punching quality
Hydraulic Cutter	Provides clean, accurate cuts to length
	Hydraulic system reduces noise and vibration
Run-out Table	Facilitates smooth product exit and temporary storage
	Designed for integration with auto stacking systems

3. Production Line Components

Component	Quantity
Hydraulic Decoiler	1 set
Roll Former	1 set
Hydraulic Cutter	1 set
Out Table	2 sets
PLC Cabinet	1 set
Hydraulic Station	1 set

4. Customization Options

For the IBR roof panel profile, we can customize the roll former stations, rib design precision, chain drive or gearbox drive options, hydraulic cutting mold dimensions, and PLC control system. Coil width and thickness range can also be adjusted to meet your regional roofing standards.
